TLM S50 Barcode Scanner
TLM S50 Barcode Scanner Original price was: ৳ 25,000.00.Current price is: ৳ 20,000.00.

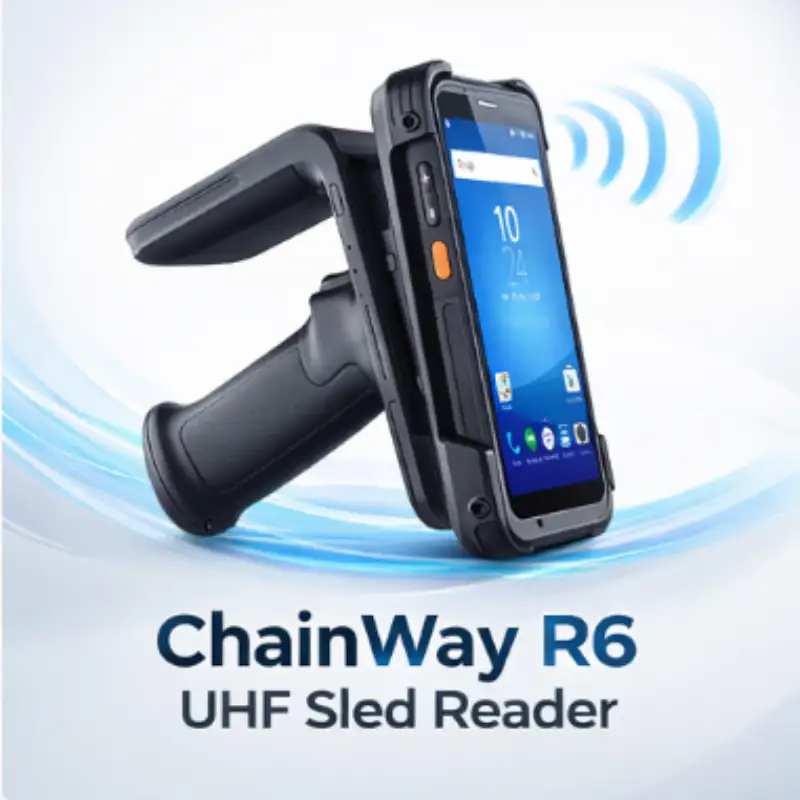

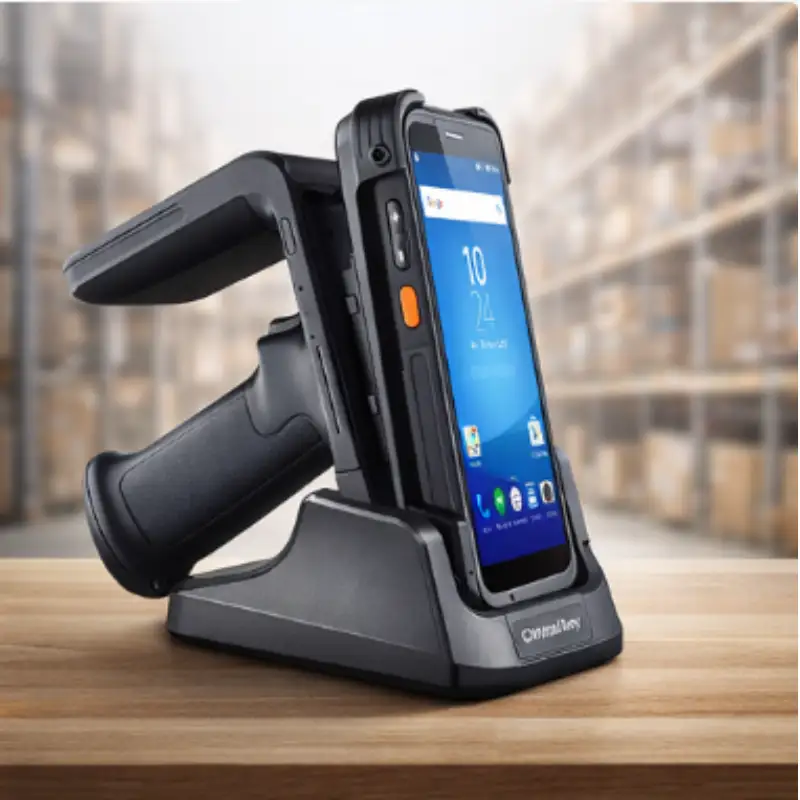

R6 UHF RFID Sled Reader

Original price was: ৳ 25,000.00.Current price is: ৳ 20,000.00.

Chainway R6 is specially designed for a complete one-piece solution with smart phone / PDA. Paired with Android / iOS-based smart phone and terminal, it can be easily transformed into a professional data collection device. Built with Impinj E Series chips and supports Impinj Gen2X, it features more powerful UHF reading and writing that enables read distance of over 31m outdoors. The RFID reader is comfortable in hand, easily detached, and can fulfill tasks in power patrol inspection, apparel cycle-counting, warehousing, asset management, fleet management, finance, etc.

Compare
Add to wishlist
Category:
Description

R6 UHF RFID Sled Reader

Communication

Bluetooth: Bluetooth Low Energy (BLE) 5.0

Physical Characteristics

Dimensions:
151 x 76 x 132 mm / 5.94 x 2.99 x 5.19 in.
Weight:
RFID configuration: 438 g (including battery)
RFID + Engine configuration: 446 g (including battery)
Power:
Battery specification: 5200 mAh removable battery
Standby: over 70 hours (keeping bluetooth connected)
Continuous use: up to 2.5 hours (UHF reading: 400 tags)
Charging time:4-5 hours (with standard adaptor and USB cable)
Buzzer: Support
Interfaces: USB 3.0 Type-C
Indicator: LED Power, Work, Bluetooth
Size of adapted: phone Sled Reader: Width 68~80 mm, thickness ≤ 22 mm
Others: Based on phone case or holder
Phone: Others Based on phone case or holder
Product Material: ABS, Aluminum Alloy
Colour: Black

Developing Environment

SDK: Android / iOS
Language: Java / Objective-C
Tool: Android Studio / Xcode
Barcode Scanning
2D Imager Scanner: SE2707
1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS,etc.
2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.
Note: This function is optional
User Environment
Operating Temp: -4℉~+122℉ / -20℃~+50℃
Storage Temp: -40℉~+158℉ / -40℃~+70℃
Humidity: 5%RH – 95%RH non condensing
Drop Specification: Multiple 1.5 m / 4.92 ft. drops to concrete across the operating temperature range
Tumble Specification: 1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing: IP54 per IEC sealing specifications
ESD: ±15 KV air discharge, ±8 KV conductive discharge

UHF RFID

Engine: Based on Impinj E Series chips
Frequency: FCC: 902 MHz – 928 MHz; 36 dBm (EIRP)
EU: 865.6 MHz – 867.6 MHz; 35 dBm(EIRP)
CH: 920.5 MHz- 924.5 MHz; 35 dBm (EIRP)
Impinj Gen2X: Supported
Protocol: EPC C1 GEN2 / ISO18000-6C
Antenna: Circular Polarized Antenna
Output Power: 1-30, step 1dB
Fastest Read Rate: 1000+ tags/sec
Max Read Range: >26m (Impinj M830 tag)
Note: Ranges are measured in the open outdoors and low interference environment, and rate is measured in a laboratory low interference environment, they are affected by tags and environment.
