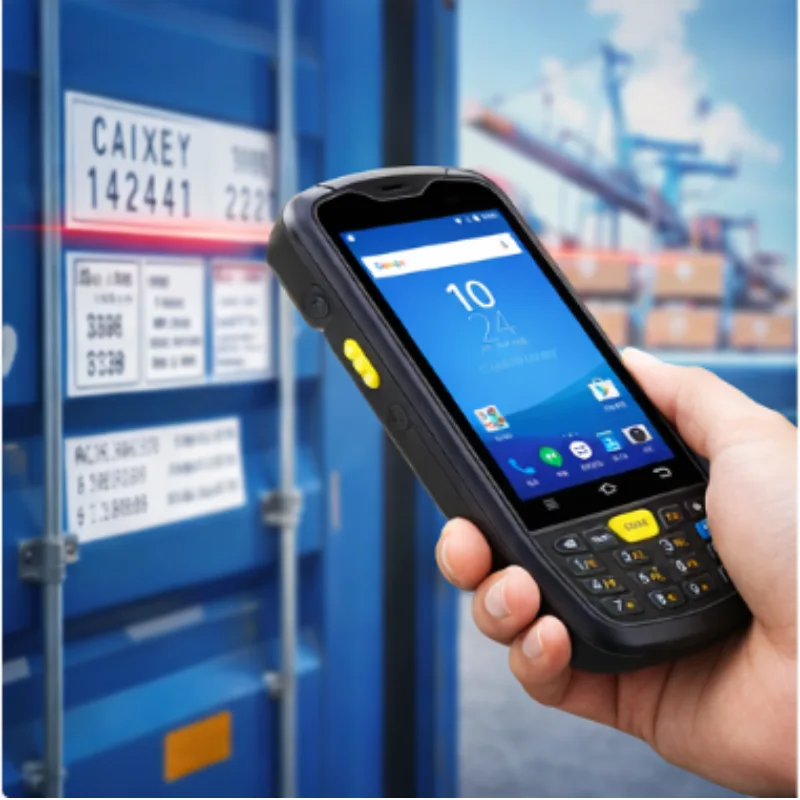

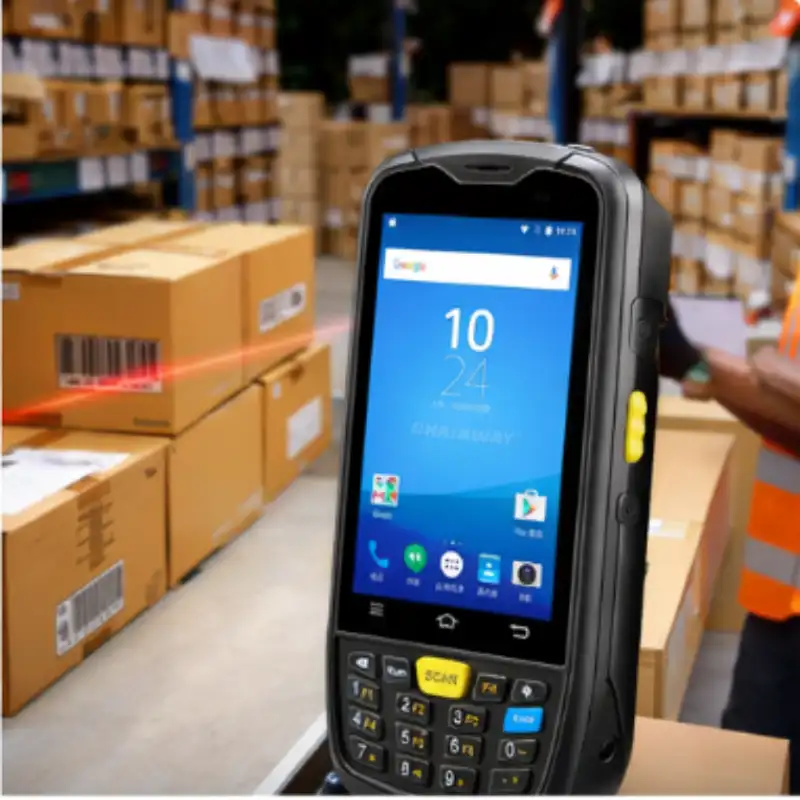

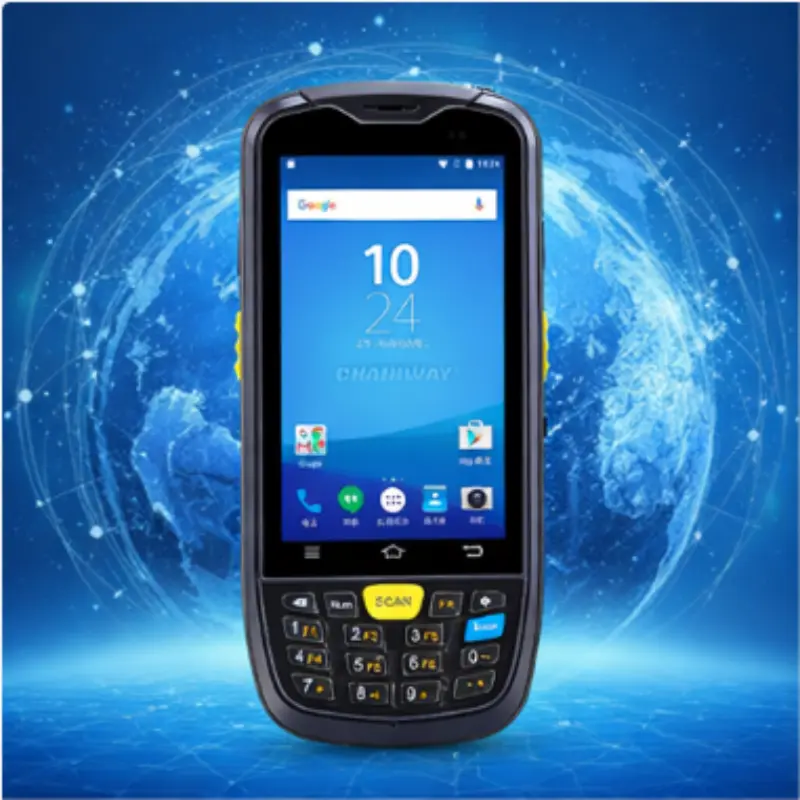

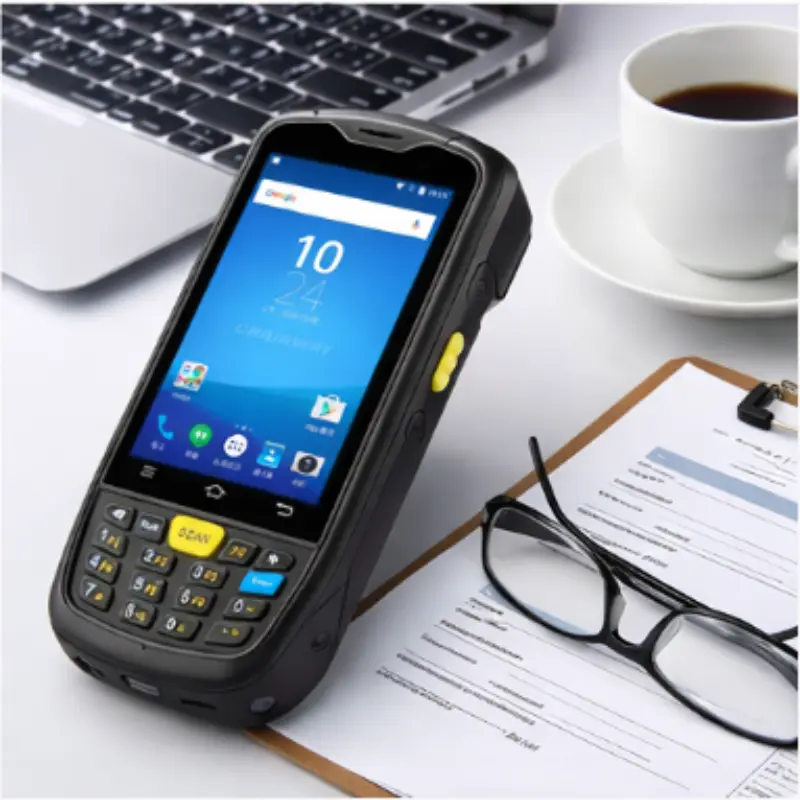

ChainWay BTRY-C6000-42MA

Physical Characteristics
Dimensions: 157.6 x 73.7 x 29 mm / 6.2 x 2.9 x 1.1 in.
Weight: 292 g / 10.3 oz.
Display: 4” WVGA (480*800), 16.7 M colors
Touch Panel: Rugged dual touch capacitive touch panel
Power:Main battery: Li-ion, rechargeable, 4200 mAh
Standby: over 300 hours
Continuous use: over 12 hours (depending on user environment)
Charging time: 3-4 hours (with standard adaptor and USB cable)

Vibrator: Support
Expansion Slot: 1 slot for Micro SIM card, 1 slot for MircoSD(TF)
Interfaces:USB Micro-B, OTG
Audio: MIC, RECEIVER, Loudspeaker(0.8W), support voice call
Keypad: 3 TP soft keys, 3 side keys, numeric keyboard
Sensors: Proximity sensor, light sensor, accelerometer sensor

Developing Environment
Operating System: Android 6.0; GMS, SafeUEM supported
SDK: Chainway Software Development Kit
Language: Java
Tool: Eclipse / Android Studio

User Environment
Operating Temp: -4°F to 122°F / -20°C to 50°C
Storage Temp: -40°F to 158°F / -40°C to 70°C
Humidity: 5%RH – 95%RH non condensing
Drop Specification: Multiple 2.0 m / 6.56 ft. drops to concrete across the operating temperature range
Tumble Specification: 1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing: IP65 per IEC sealing specifications
ESD: ±15 KV air discharge, ±6 KV conductive discharge

Camera
Camera 8 / 13MP Autofocus with Flash

Communication
WLAN: IEEE802.11 a/b/g/n, 2.4G/5G dual-band, internal antenna
WWAN: 2G: 850/900/1800/1900MHz
3G: WCDMA: B1, B2, B4, B5, B8
4G: TDD-LTE: B38, B39, B40, B41
FDD-LTE: B1, B2, B3, B4, B5, B7, B8, B12, B17, B20
WWAN (Others): Depending on the country’s ISP
Bluetooth: Bluetooth 4.0, BLE
GNSS: GPS/AGPS, GLONASS, BeiDou, internal antenna
Note: *C6000 models being manufactured for Brazil Market, do not include 4G B7 and B38 frequency.

*C6000 Wifi-Only Model available. Wifi-Only model does not include WWAN GSM_GPRS(2G,3G,4G) and sim card socket.

Performance
CPU: Cortex A-53 1.3 GHz Quad-core
RAM+ROM: 2GB + 16GB
1GB + 8GB (optional)
Expansion: Supports up to 128 GB Micro SD card

Barcode Scanning
1D Linear Scanner: Zebra SE965 / Honeywell N4313 / UE966
2D Imager Scanner: Zebra SE4710; Honeywell N6603
1D Symbologies: UPC/EAN, Code128, Code39, Code93, Code11,Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of5, Codabar, MSI, RSS, etc
2D Symbologies: PDF417, MicroPDF417, Composite, RSS, TLC-39,Datamatrix, QR code, Micro QR code, Aztec,MaxiCode; Postal Codes: US PostNet, US Planet,UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc
Note: This function is optional

NFC
Frequency: 13.56 MHz
Protocol:ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc
Chips: M1 card (S50, S70), CPU card, NFC tags, etc
Range: 2-4cm
Note: Pistol grip is optional, NFC can not coexist with the pistol grip
